Automatic Products CS15 with a different Control Board ?

Notice: Due To Increasing Amounts of Spam:
Links to Outside Websites Are No Longer Allowed
Posts are Now Limited to 2 per day.
Sorry For any Inconvenience.

1 post / 0 new

Log in or register to post comments

Fri, 05/10/2019 - 00:53

#1

Jeroen

Offline

Last seen: 2 years 9 months ago

Joined: 05/09/2019 - 22:33

Automatic Products CS15 with a different Control Board ?

Good day all,
I'm having some trouble with a hobby rebuild of a AP CS15 which was almost scrapped.
The Control Board does not have the same connectors as I can find in my downloaded AP C Series Manual... The connector that goes to the Coin unit has a 11 pin AMP in-line connector (RH side of the board) with the key at position 2.
As the old Coin Unit (NRI G26) has some flaws and broken bits, I would like to install a newer Coin Unit (NRI G46) but as the G26 has a way different Connector (11pin AMP, 6wires used) as compared to the new G46 (6Pin, 5 wires used) I'm trying to find the schematics for this Control Board. Many thanks for any and all info available :-)
Jeroen

Attachment	Size

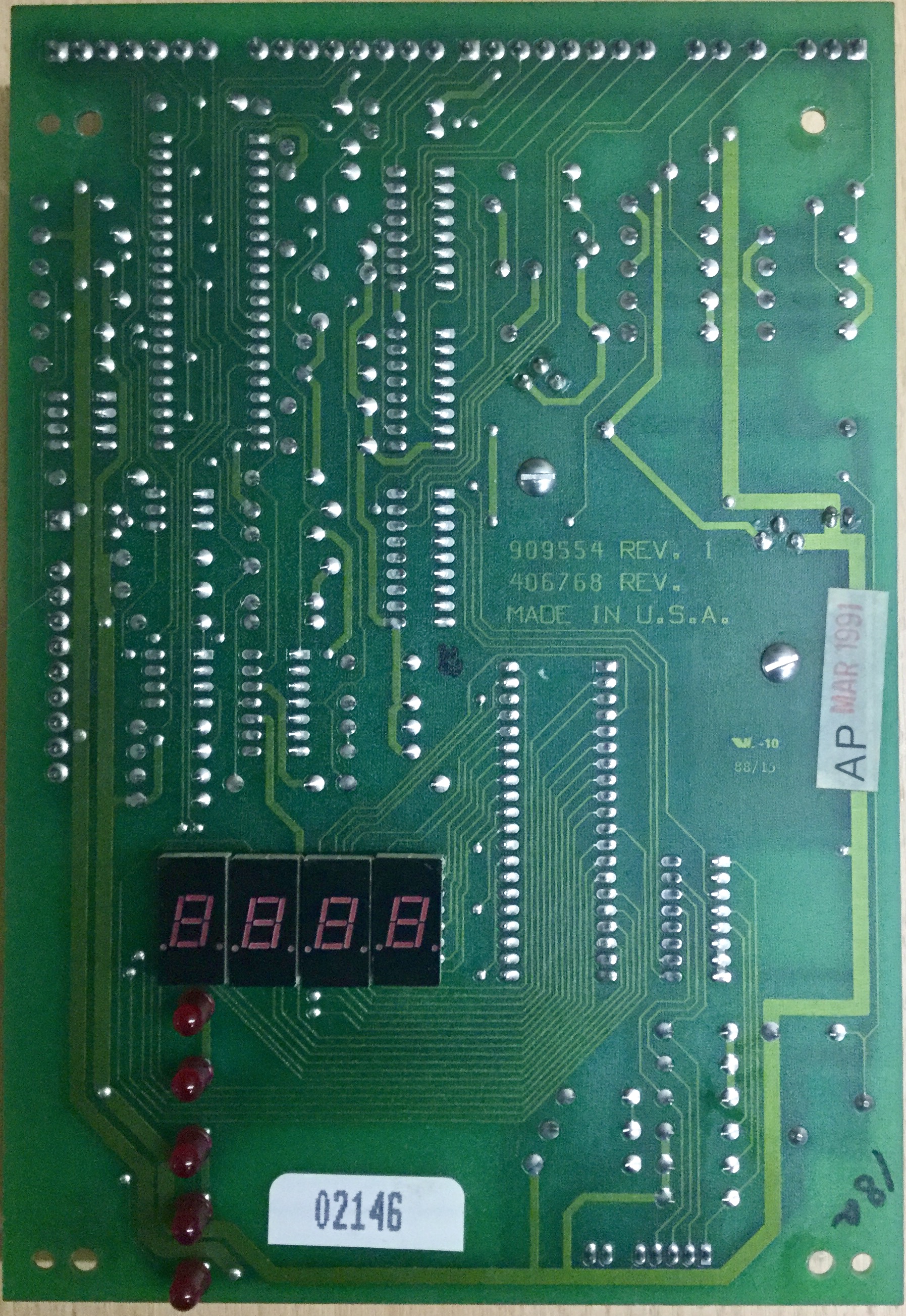

AP CS15 Control Board rear view	1.79 MB

AP CS15 Control Board
